Description
BrioVent Ventilator is designed, developed and manufactured in India. BrioVent is the result of a team of experienced engineers, designers, and software developers working together for 36 months. BrioVent is a very cost-effective and innovative investment as it is compatible with all patient types and can operate in various ventilation modes.

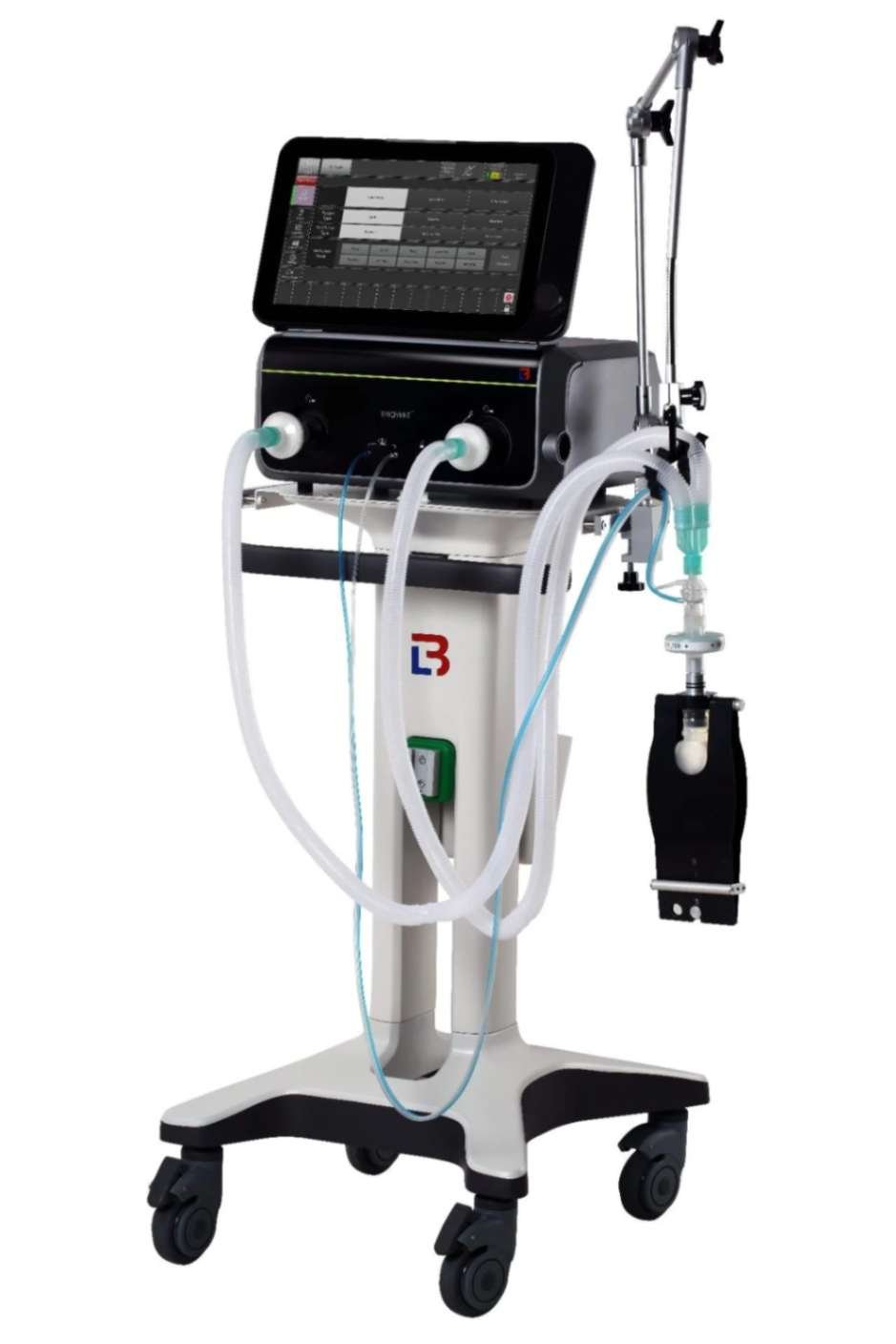

BRIOVENT VENTILATOR
- Adult, Pediatric & Neonatal (Starting @2ml)
- Turbine Driven
- 15.6 Inch Display With Touch Screen
- PRVC, SIMV, APRV, MMV, Biphasic Modes Are Included Apart From Conventional Modes.
- Apnea Backup Mode – PC A/C Or Vc A/C
- Niv With Automatic Leakage Compensation
- Waveforms & Loops – Pressure Time Waveform, Volume Time Waveform, Pressure Volume Loop, Flow Volume Loop, Flow – Pressure Loop
- Breath By Breath Monitoring Of 31 Important Parameters
- O2 Therapy(Hfnc) – Fio2 : 21% – 100%, Flow : 1- 60 Lpm
- Personalized Profiles
- 4 Hours Of Battery Backup
- Breath By Breath Display Of Compliance And Resistance
- Int. Peep, P0.1, Hold, Exp. Hold Maneuvers
- Graphical Trend/Tabular Trend/Event Log
- Low Flow Oxygen(LPO)
- Peak Inspiratory Flow Upto 200 Lpm (Regulated)
- Dynamic Setting Limit As Per Safety Standard – Do Not Allow User To Do Wrong Setting
MODES
- VC A/C (Volume Control Assist Control)
- VC SIMV (Volume Control Synchronized Intermittent Mandatory Ventilation)
- PC A/C (Pressure Control Assist Control)
- PC SIMV (Pressure Control Synchronized Intermittent Mandatory Ventilation)
- PRVC (Pressure Regulated Volume Control)
- PRVC SIMV (Pressure Regulated Volume Control, Synchronized Intermittent Mandatory Ventilation)
- APRV (Airway Pressure Release Ventilation)
- BIPHASIC (Biphasic Positive Pressure Ventilation)
- PC-MMV (Pressure Control Mandatory Minute Ventilation
- CPAP-PSV (Continuous Positive Airway Pressure with Pressure Support and Apnea Backup)
- Ncpap (Neonatal Continuous Positive Airway Pressure)
- NCPAP-NIPPV (MCPC+ Noninvasive positive pressure ventilation)
- O2 Therapy (High Flow Nasal Oxygen Therapy)
SPECIFICATIONS
VERSATILE
One Ventilator For Adult, Pediatric, Neonatal (2ml).
SMART
Access Of Basic, Advance And Weaning Parameters At One Glance.
ADVANCE MODES
PRVC, APRV, Biphasic MMV Wide Selection Among NIV Modes
INTELLIGENT
Breath By Breath Display Of Compliance And Resistance, Lung Dynamics. Lung Recruitment, Dynamic Setting Limits.
02 FLUSH
Configurable Increment Of Fio2 For A Limited Period Of Time As Post Suction Tool,
DYNAMIC SETTING LIMITS
- Dynamic Setting Gives Safe Operation By Not Allowing
- Operator To Set Parameters Out Of Safety Limits,
02 THERAPY
Let Your Patient Be Treated On Non-Invasive High Flow Oxygen Therapy Through Nasal Cannula.
RECRUITMENT MANEUVER
Lung Recruitment Tool Provides Sustained Inflation Of Lungs, Aiming To Open-Up The Collapsed Alveoli.
TOUCH SCREEN AND ROTARY KNOB OPERATION
Briovent High Definition 15.6″ Bright Display Gives Crystal Clear Information Of Vital Patient Parameters, Touch Screen Gives Ease Of Access Along With Rotary Knob Operation.
360 DEGREE VIEWABLE ALARM INDICATION
Top Mounted Alarm Indicator With Priority Based Color Code Gives Instant Alert To Operator, The Location Of The Indicator Is Visible From Any Angle.
HIGH PERFORMANCE NOISELESS TURBINE
Highly Responsive Turbine Gives Seamless Flow Deliveries From Neonatal To Adult Patient Category
WAVEFORMS & LOOPS
- Pressure Time Waveform
- Volume Time Waveform
- Flow Time Waveform
- Pressure-Volume Loop
- Flow-Volume Loop
- Flow-Pressure Loop
APNEA BACKUP MODE
- PC A/C OR VC A/C
POWER SUPPLY & BATTERY
- Input Voltage: 110-240 VAC 50/60 Hz
- Battery: Lithium-Ion 10A, 24VDC
- Backup Time: 5 Hours In Normal Working Condition
- Interface: USB, VGA, Rj45
