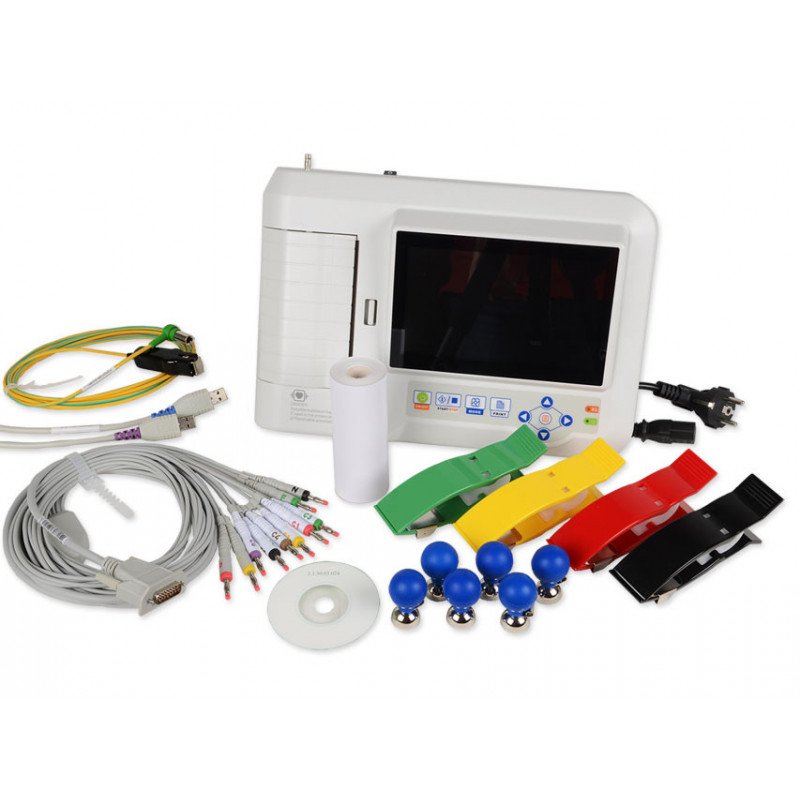

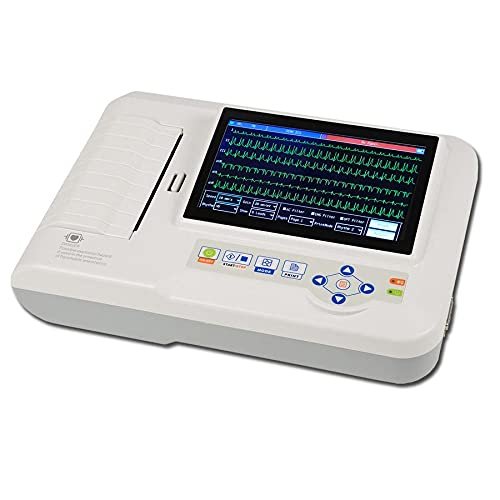

Contec 6-Channel ECG Machine 600G
Product Specifications
- 800x480TFT Color LCD shows the working status and ECG waveform; Touch Screen and soft keyboard control, more convenient for operation.
- 12 Leads ECG simultaneous acquisition, digital signal processor, to get Higher quality ECG waveforms through the AC filter, baseline filter and EMG Filter of the ECG signals.
- Simultaneous display of 3/6/12 leads ECG waveform, and the state of Printing mode, sensitivity, speed, filter etc, to be easy for interpretation.
- Sampling twelve leads ECG signal at the same time, analyzing 2× 6+1(rhythm lead), 2× 6, 3× 4, 3× 4+1(rhythm lead), 4× 3, 4× 3+1(rhythm Lead), 6× 2, 6× 2+1(rhythm lead)recording mode at the same time, and Reporting with multi-formats.
- The power supply includes both AC/DC. This device includes built-in lithium Polymer rechargeable battery. It can standby for 4 hours, print 150 pieces Of ECG waveform and print 90 minutes continually under the best DC state To satisfy the need of visiting patients and physical examination.
- It has built-in storage with large capacity, and can memory more than 1000 Cases, which is easy for doctor review and statistic.
- Under the review mode, you can see the saved ECG waveform, auto-Analysis and auto-interpretation of ECG waveform parameter, auto-Interpretation conclusion.
- Support Chinese, English, Italian and Turkish operating interface, can print out Chinese or English, Italian, Turkish report.
Power Supply:
- Safety Class: Class I, Type CF applied part. There is a defibrillation circuit.
- Power supply: AC: 100V~240V, 50/60Hz
- DC: 7.4V, 3700 mAh rechargeable lithium battery
Print:
- Recording way: Thermal printing system
- Specification of recording paper: 110mm(W)× 20m(L) High-speed thermal paper
