Description

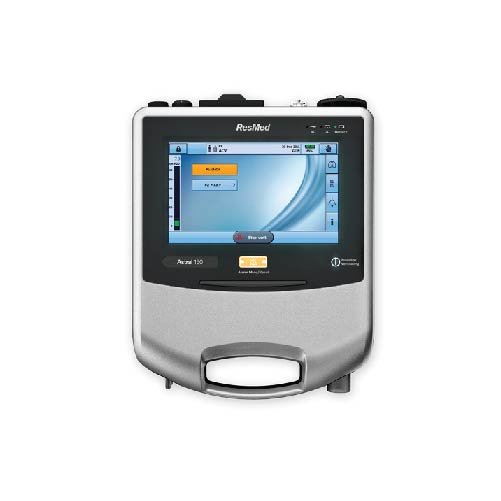

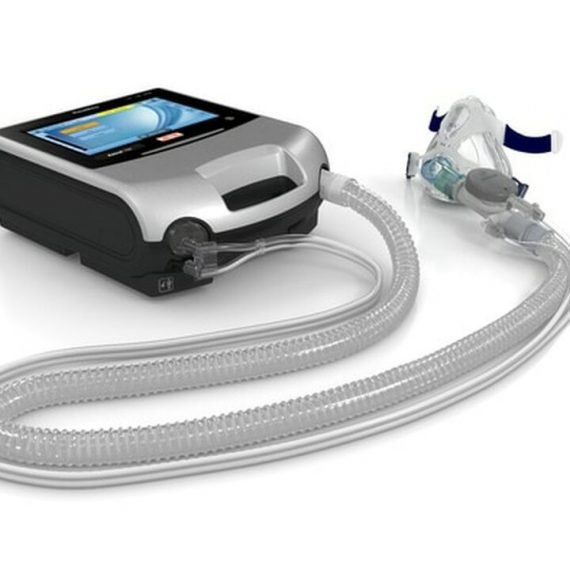

Resmed Astral 150 Portable Ventilator Features:
- Comes with all the standard features of Astral 100, plus FiO2 monitoring and double limb circuit capabilities
- Through the ResMed Connectivity Module (RCM), Astral can connect to AirView™, a ResMed patient monitoring tool, giving you access to key patient data
- Offers an impressive power-to-weight ratio
- Easy learning curve for clinicians and caregivers
- Responsive algorithms deliver adaptive, personalized ventilation as the disease progresses
- When safety and security are paramount: ResMed Astral™ features remote monitoring capabilities and up to 16 hours of continuous portable power.
- Easy to use: easy to operate due to its intuitive interface and user-friendly features, including big button technology, program naming options and quick setup assistant.
- So smart, yet so simple: Astral features simple, yet sophisticated technologies for both invasive and non-invasive ventilation. One versatile ventilator provides flexible therapy options, including ResMed iVAPS™ with optional AutoEPAP, a mode well-suited for COPD patients. And with its remote patient monitoring capabilities.
Resmed Astral 150 Portable Ventilator Specifications:
| Indications for use | Life support for patients over 11 lbs (5 kg) |
| CIRCUIT | |
|---|---|
| Single circuit with leak | √ |
| Single circuit with valve | √ |
| Double circuit | √ |
| THERAPY | |
| Valve circuit therapy: CPAP, (A)CV, P(A)CV, P-SIMV, V-SIMV, PS | √ |
| Leak circuit therapy: CPAP, (S)T, P(A)C, iVAPS3 and optional AutoEPAP4 | √ |
| Mouthpiece ventilation therapy: (A)CV , P(A)CV, PS/SVt | √ |
| Manual breath | √ |
| Sigh breath (recruitment) | √ |
| Apnea ventilation | Volume and pressure |
| Preset programs | 4 |
| PRESSURE RANGE AND SETTINGS | |
| Delivered pressure (cmH2O) | 2–50 (leak circuit) & 0–50 (valve circuit) |
| Delivered tidal volume (mL) | Adult: 100–2500 mL & Pediatric: 50–300 mL |
| Respiratory rate | Adult: Off, 2–50 bpm & Pediatric: Off, 5–80 bpm |
| DATA | |
| SpO2 monitoring | Optional |
| FiO2 monitoring | |
| On screen | 30 days of summary data & Real-time pressure and flow (25 Hz) |
| ResScanTM (via download) | 365 days of summary data & 7 days of detailed data |
| AirViewTM (RCM required) | 365 days of summary data & 7 days of detailed data |
| ALARMS | A WIDE RANGE OF SETTABLE ALARMS ARE AVAILABLE INCLUDING FIO2 AND SPO2 WHEN CONNECTED |
| DIMENSIONS | |
| Weight | 7.1 lbs (3.2 kg) |
| Dimensions (L x W x H) | 285 mm x 215 mm x 93 mm |
| Internal battery | Lithium-Ion battery, 14.4 V, 6.6 Ah, 95 Wh. 8 hours of backup power |
| Sound power level | 43 +/- 3 dBA: as measured according to ISO 80601-2-12:2011 |
| Sound pressure level | 35 +/- 3 dBA: as measured according to ISO 80601-2-12:2011 |
